Liberty Head Double Eagle Identification Guide: Type 1, 2, 3 Key Dates, Mint Marks, and Values

History and Origins: The Gold Rush and the 1849 Act

The Liberty Head Double Eagle was born of California gold. The discovery at Sutter's Mill in January 1848 transformed the United States from a silver-standard economy into one suddenly awash in gold, and existing coin denominations were inadequate for the new volume. Until 1849 the largest US gold coin had been the $10 eagle, struck since 1795 in modest quantities. By late 1848 the Mint and Congress were already considering a larger denomination to handle the coming flood of bullion.

On March 3, 1849, Congress passed legislation authorizing both the $1 gold dollar and the $20 double eagle. The new denomination doubled the eagle's face value and quadrupled its precious-metal content. James Barton Longacre, the Mint's Chief Engraver from 1844 until his death in 1869, was assigned to design the new coin. Longacre was the same engraver who would design the Flying Eagle Cent, the Indian Head Cent, the Two Cent Piece, the Three Cent Pieces, and the Shield Nickel — a remarkable run of mid-19th-century US designs from a single hand.

Longacre's Design Approach

Longacre approached the Double Eagle in the neoclassical tradition of his earlier work. The obverse depicts a left-facing Liberty bust with a coronet inscribed LIBERTY, surrounded by thirteen stars representing the original colonies, with the date below. The reverse features a heraldic eagle with a shield on its breast, holding olive branches and arrows, with a circle of thirteen stars and rays above. The design lineage runs directly back to John Reich's Capped Bust heraldic eagles and to Christian Gobrecht's Seated Liberty compositions — a conservative continuation of established American iconography.

The Production Run: 1850-1907

After a single 1849 pattern (one example known, held by the Smithsonian), regular production began in 1850 at Philadelphia and the newly active New Orleans Mint. Over the next 58 years the series would be struck at five US mints — Philadelphia, New Orleans, San Francisco, Carson City, and Denver — encompassing the entire era from the Gold Rush through the start of the 20th century. Production ended in 1907 when Theodore Roosevelt's beautification campaign replaced the Longacre design with Saint-Gaudens's masterpiece, ushering in the brief but glorious final chapter of US gold coinage.

Historical Significance

Few US coins witnessed as much American history. The Liberty Head Double Eagle was the primary medium of trans-Pacific silver-and-gold exchange during the China trade era — the same era that produced the Trade Dollar. It funded both Union and Confederate finance during the Civil War. It backed Treasury reserves through the Greenback Era, the Panic of 1873, and the Bland-Allison and Sherman Silver Purchase Acts. It circulated alongside the early Morgan Silver Dollar issues and was the workhorse gold coin of the late 19th century until the Saint-Gaudens redesign began the modern era.

Design Details: Longacre's Liberty Head and Heraldic Eagle

Knowing every element of the Liberty Head Double Eagle design is essential for type identification, grading, and authentication. Longacre's composition carries the major changes that define the three subtypes, plus dozens of smaller die-level variations.

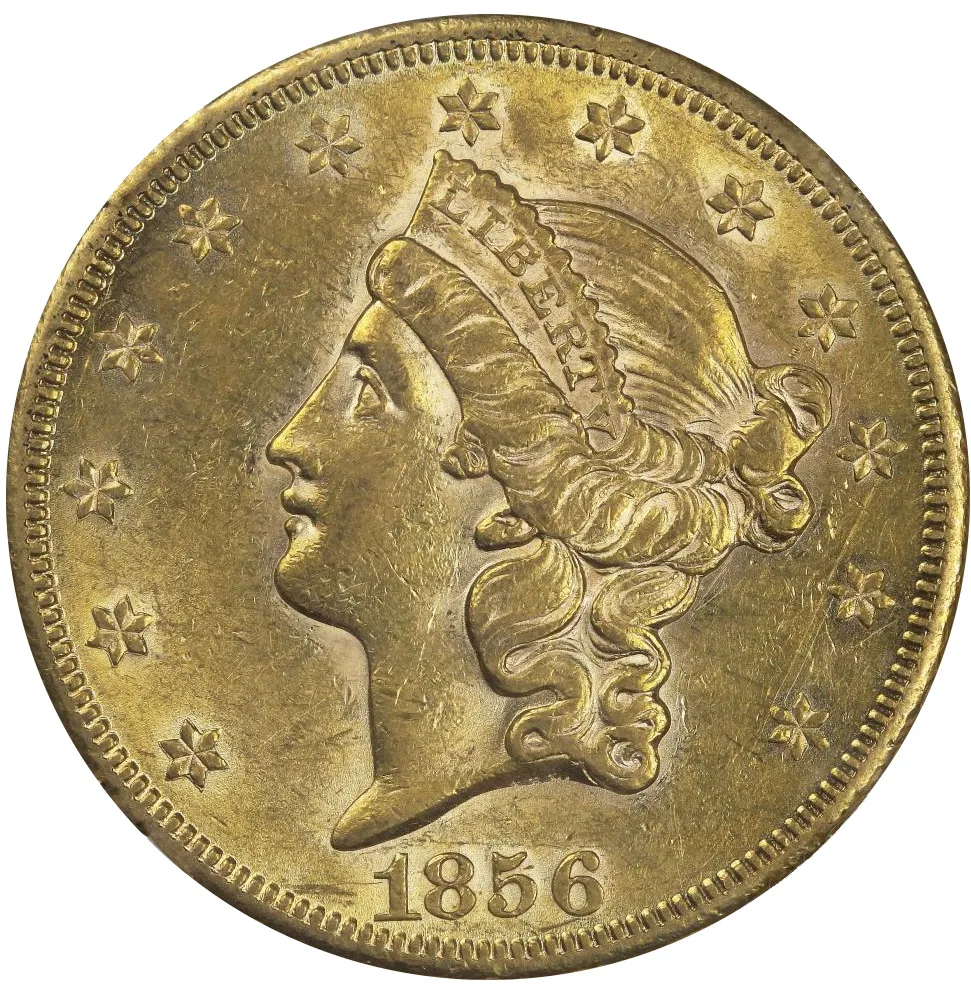

Obverse (Heads Side)

The obverse depicts a left-facing bust of Liberty with flowing hair gathered into a bun behind, bound by a coronet across the forehead inscribed LIBERTY. Thirteen six-pointed stars surround Liberty in an arc — seven to the left and six to the right — representing the original colonies. The date appears at the bottom below the truncation of the bust. The fields are smooth and the relief is moderate, allowing efficient single-blow striking unlike the later Saint-Gaudens design.

The coronet itself bears the inscription LIBERTY in raised letters. Wear progression on the coronet — particularly visibility of all seven letters of LIBERTY — is one of the standard grading checkpoints used by PCGS and NGC, much like the LIBERTY headband on the Barber Half Dollar or the Barber Quarter.

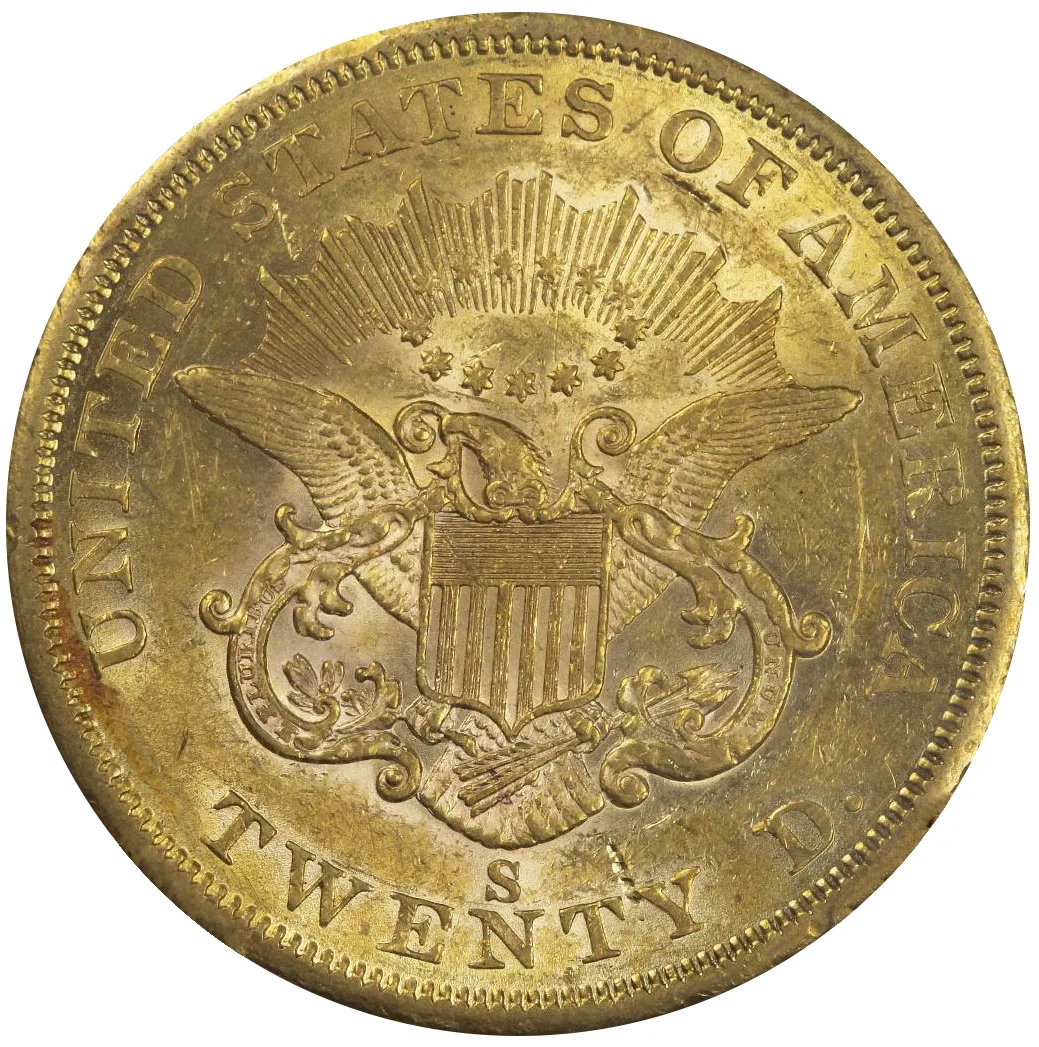

Reverse (Tails Side)

The reverse depicts a heraldic eagle with wings spread, a Union shield on its breast, holding three arrows in its left talon (representing war) and an olive branch in its right (representing peace). Above the eagle, a circle of thirteen stars sits within a glory of sun rays. UNITED STATES OF AMERICA arches around the upper rim, and the denomination appears at the bottom — initially as TWENTY D. from 1849 through 1876, then changed to the spelled-out TWENTY DOLLARS from 1877 through 1907. The motto IN GOD WE TRUST appears on a scroll above the eagle beginning in 1866.

The Edge

Unlike the later Saint-Gaudens lettered edge, the Liberty Head Double Eagle has a conventional reeded edge with a high count of fine reeds. The reeded edge style is consistent across all three types and all 58 years of production. Edge integrity is a key authentication checkpoint — many counterfeits get the reed count wrong or show file marks where collars were modified.

The Three Major Types: 1849-1907

Liberty Head Double Eagles divide into three distinct types based on reverse details. Type identification is fundamental — type-set collectors pursue one example of each, and certain key dates fall entirely within a single type.

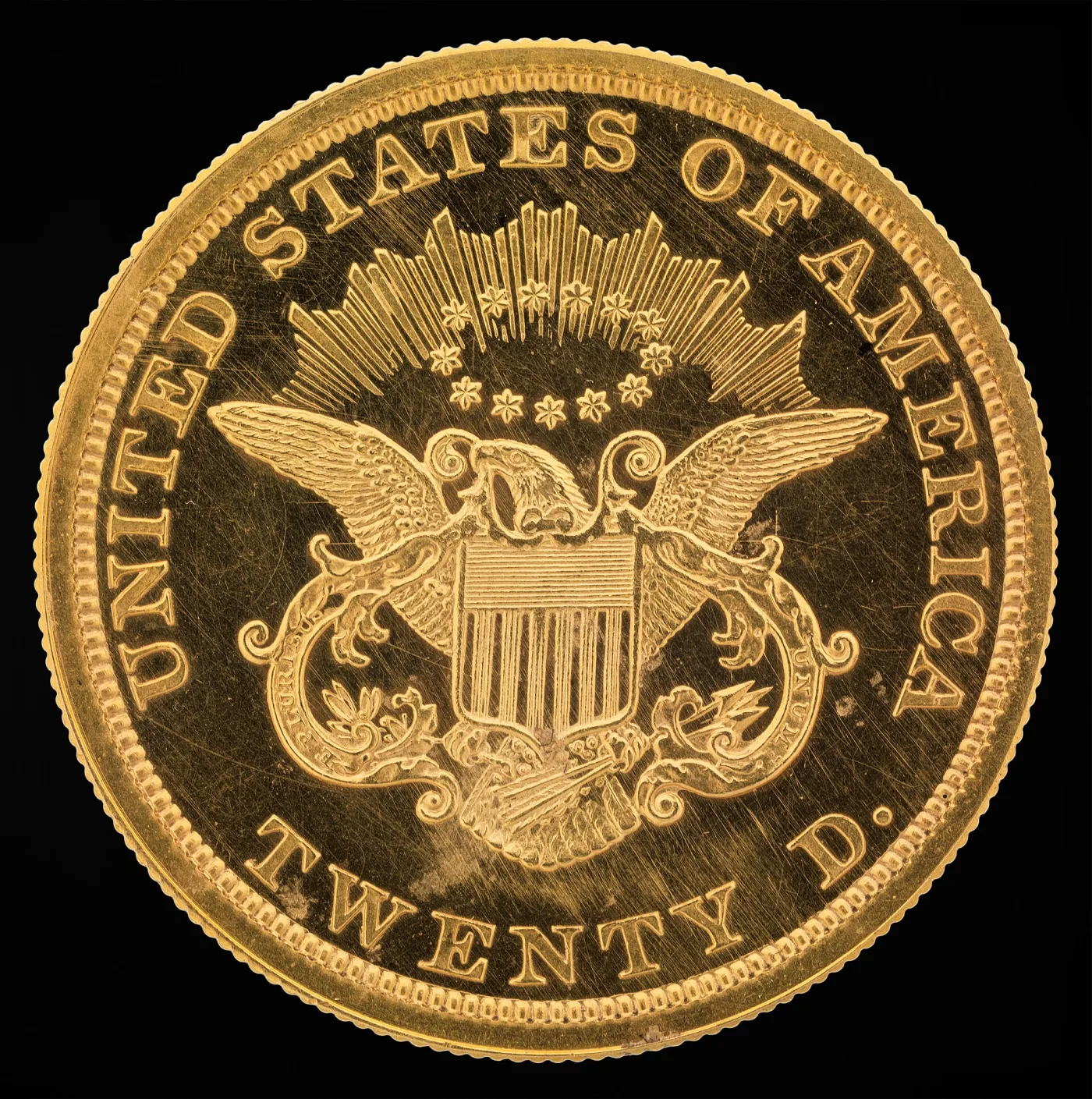

Type 1: 1849-1866 No Motto, "TWENTY D."

The Type 1 design carries no IN GOD WE TRUST motto on the reverse and uses the abbreviated denomination TWENTY D. The reverse field above the eagle is open with only the circle of stars and rays. Type 1 ran from the 1849 pattern through mid-1866 and includes the great Gold Rush era issues, the early San Francisco branch mint pieces, the entire Civil War, and the iconic 1854-O and 1856-O New Orleans rarities. Type 1 is the most historically significant and condition-rarity-rich of the three types.

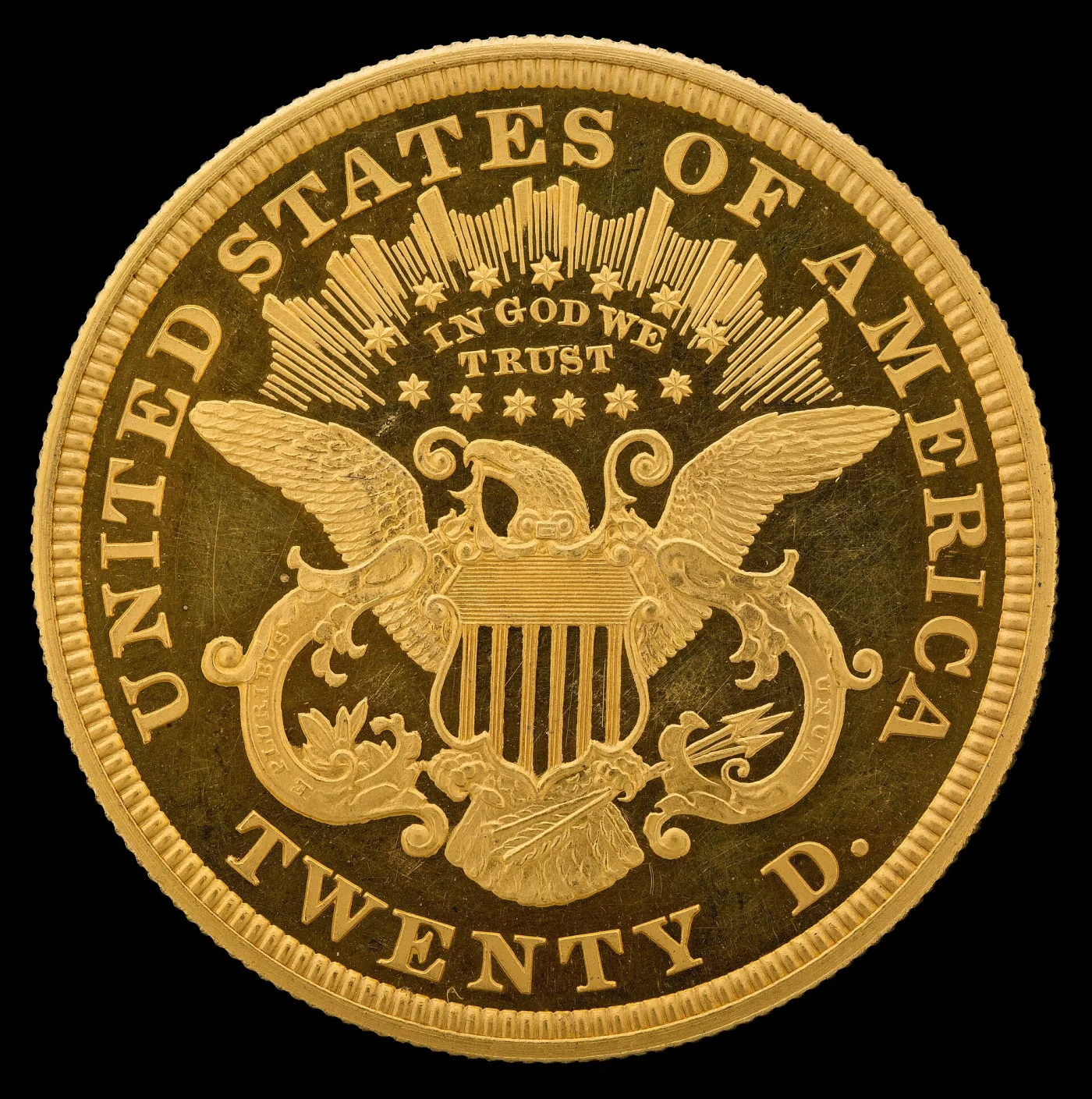

Type 2: 1866-1876 With Motto, "TWENTY D."

The Type 2 design adds IN GOD WE TRUST on a scroll above the eagle but retains the abbreviated TWENTY D. denomination. The motto was added in 1866 in response to the Civil War-era religious revival, the same legislative movement that placed the motto on the Two Cent Piece beginning in 1864. Type 2 ran for only eleven years and includes the most legendary regular-issue Carson City rarity — the 1870-CC — along with several other condition rarities. Type 2 coins are notoriously difficult to find in choice Mint State; surviving populations are concentrated in circulated and low-Mint-State grades.

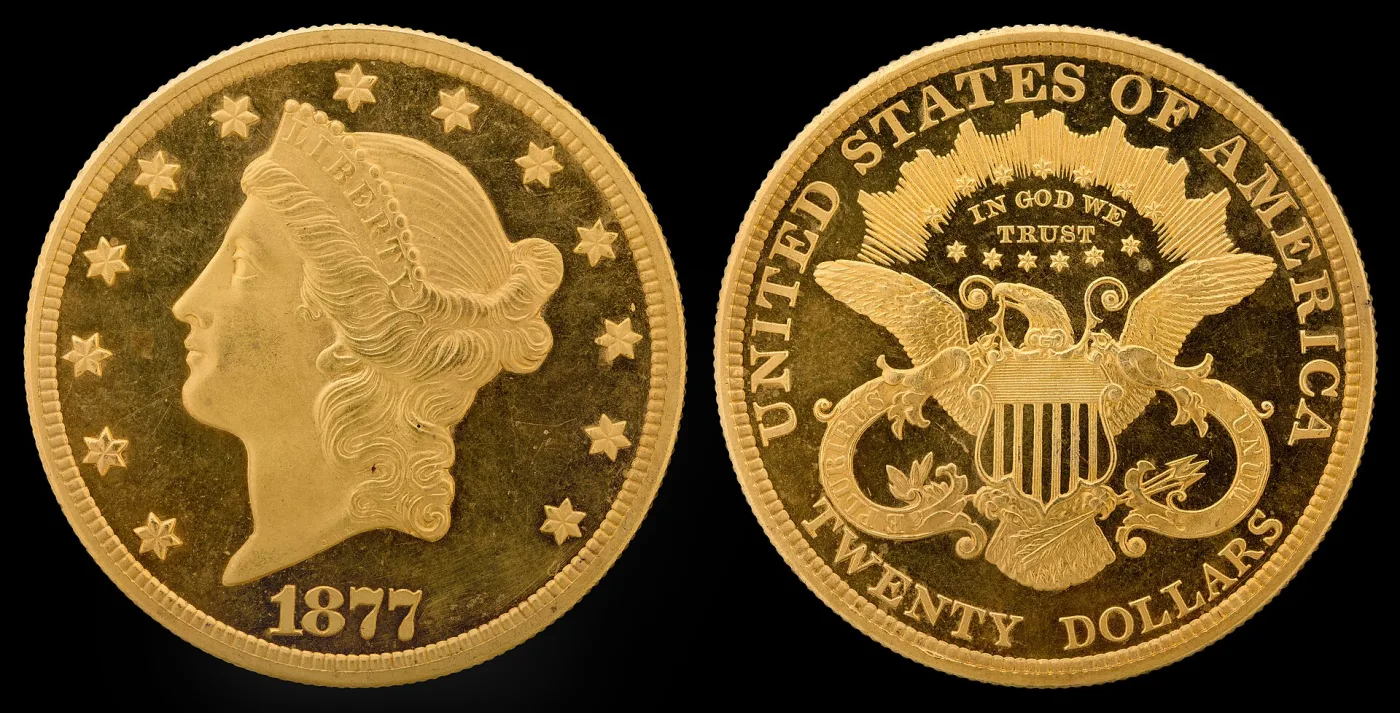

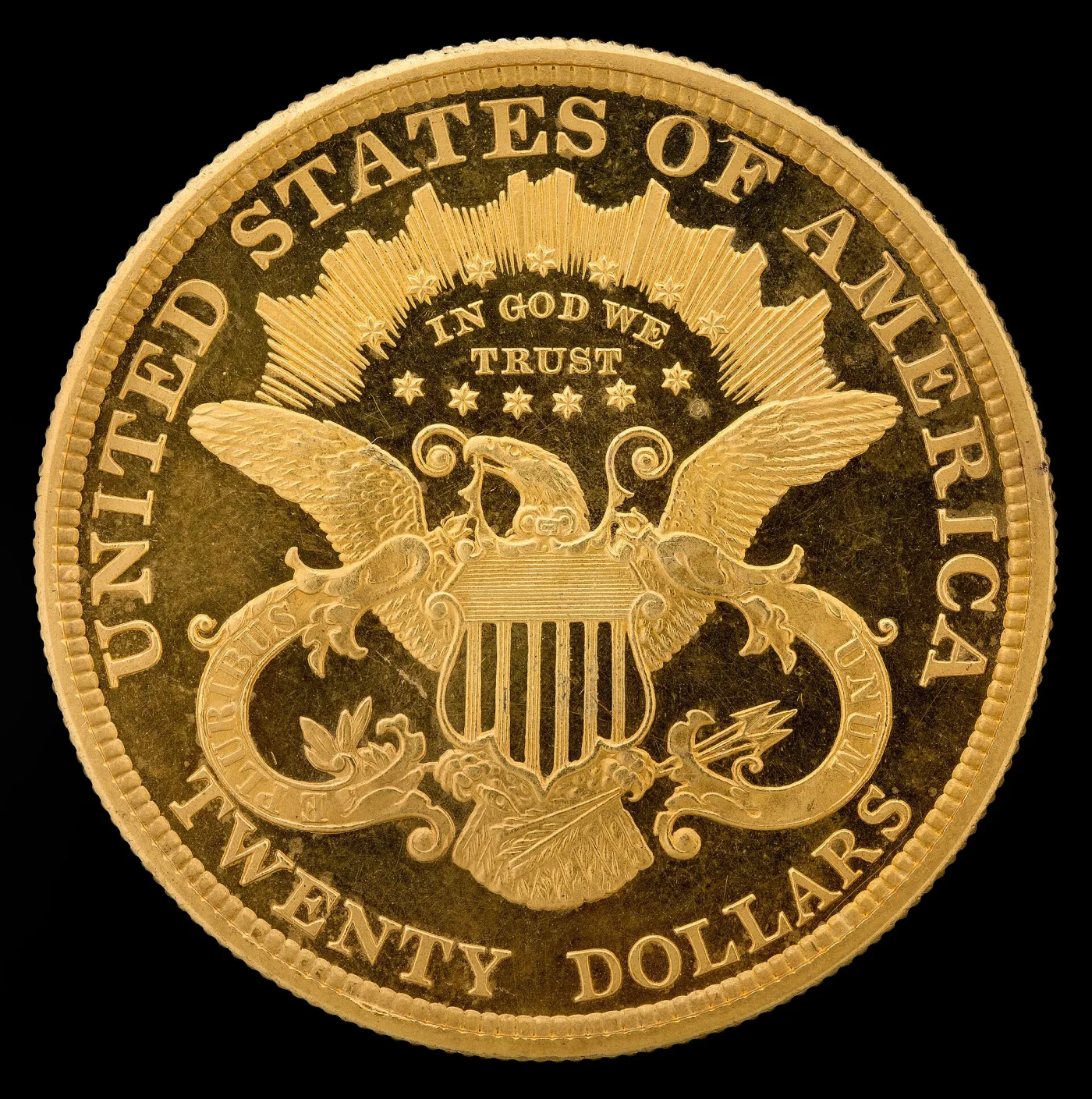

Type 3: 1877-1907 With Motto, "TWENTY DOLLARS"

The Type 3 design spells out the full denomination TWENTY DOLLARS while retaining IN GOD WE TRUST. The denomination change ended the long-running abbreviation tradition that had run since 1849. Type 3 is by far the longest-running of the three types — thirty years — and represents the bulk of surviving Liberty Head Double Eagles. Most common-date Liberty Heads encountered in the market are Type 3 issues from the 1890s and early 1900s, when major refinery shipments from European banks have returned large hoards of well-preserved examples to the US.

Quick Type Identification Reference

• Type 1: No motto on reverse; denomination reads TWENTY D. — 1849 through mid-1866
• Type 2: IN GOD WE TRUST on scroll; denomination reads TWENTY D. — mid-1866 through 1876
• Type 3: IN GOD WE TRUST on scroll; denomination reads TWENTY DOLLARS — 1877 through 1907

Composition and Specifications

Every Liberty Head Double Eagle is struck in 90% gold and 10% copper — the standard US gold alloy used from 1837 through 1933 for all production gold coinage. The copper content gives the coins their characteristic warm, slightly orange-tinted color and provides hardness that pure gold lacks. The same alloy and weight specifications carry forward unchanged to the Saint-Gaudens Double Eagle successor.

Physical Specifications

• Composition: 90% gold, 10% copper
• Total weight: 33.436 grams (516 grains)
• Net gold weight: 30.0926 grams (0.9675 troy ounces)
• Diameter: 34.0 millimeters
• Thickness: Approximately 2.4 millimeters
• Edge: Reeded
• Face value: $20

The 0.9675 troy ounce gold content is the bullion-value floor for every Liberty Head Double Eagle. At 2026 gold prices, this means even a heavily worn common-date example carries well over $2,500 in pure metal value alone, before any numismatic premium. This bullion floor distinguishes gold coinage from silver — a worn Mercury Dime may be worth only its silver value, but a worn Liberty Head carries substantial intrinsic worth that protects collector outlay even on the most common dates.

Production Tolerances

The Mint's legal tolerance on the Double Eagle planchet was 0.5 grain per piece, or approximately 0.032 grams. Coins outside this tolerance were rejected at the Mint and melted. Surviving genuine coins should weigh between 33.404 and 33.468 grams. Counterfeits frequently weigh outside this range, making a precision scale a primary authentication tool.

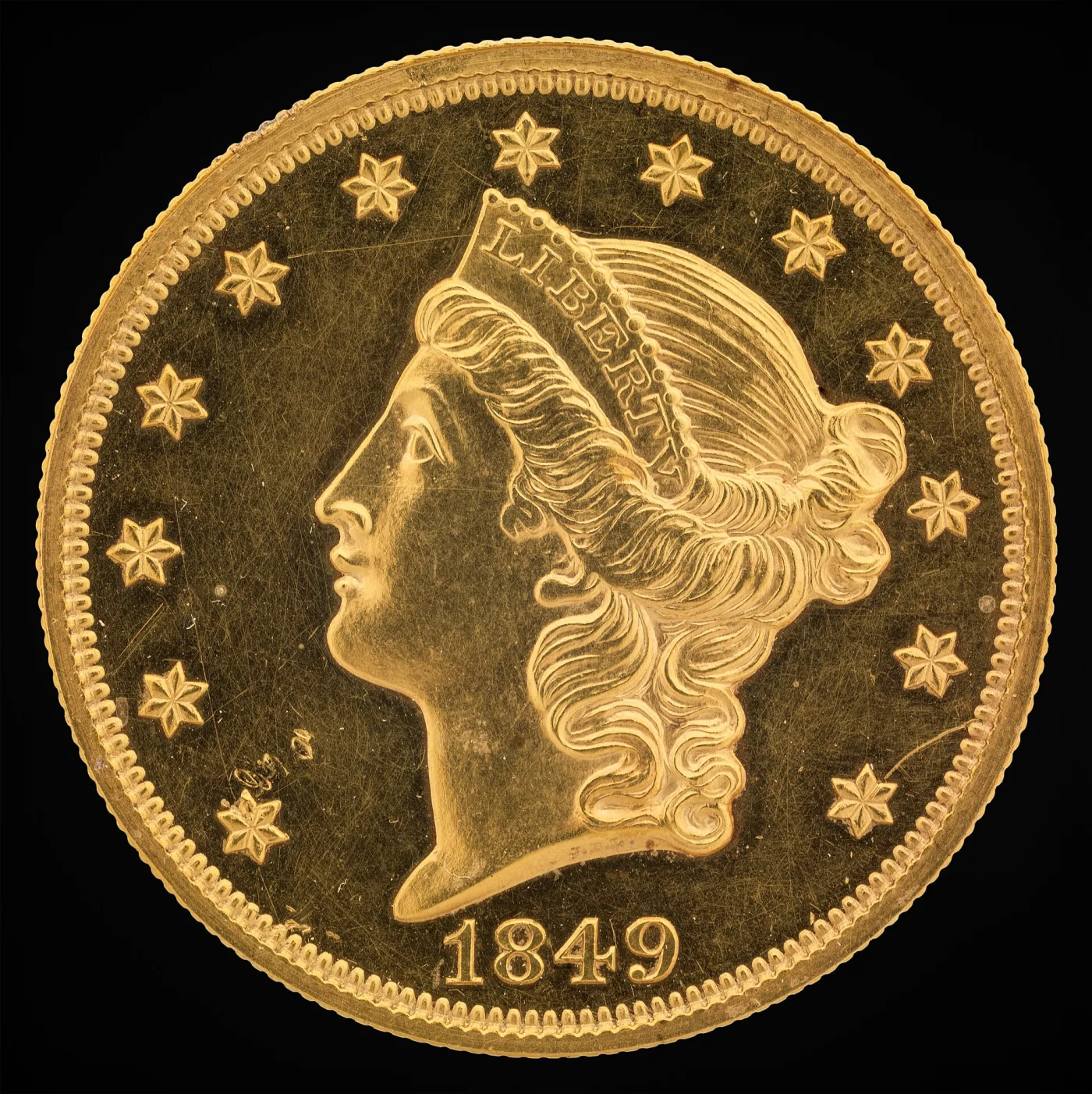

The Unique 1849 Pattern

The 1849 Liberty Head Double Eagle is the rarest US gold coin known to exist — only one example is confirmed, and that single coin resides in the Smithsonian Institution's National Numismatic Collection. A second example is rumored but unconfirmed, and may be apocryphal.

The Pattern Production

In late 1849, the Philadelphia Mint struck a small number of pattern Double Eagles to test Longacre's design and the new denomination. Records suggest approximately two pieces were struck for assay and presentation. One was retained by the Mint and ultimately transferred to the Mint Cabinet collection, which became the foundation of the Smithsonian's numismatic holdings. A second piece was reportedly presented to Treasury Secretary William M. Meredith but has never been definitively located.

Distinguishing the 1849 Pattern

The 1849 pattern bears the date 1849 on the obverse — a date that does not appear on any regular-issue Liberty Head Double Eagle. The reverse shows the Type 1 No Motto design with TWENTY D. denomination. Because no genuine privately-owned 1849 exists, any 1849-dated Double Eagle offered for sale should be considered counterfeit until conclusively proven otherwise — and historical precedent suggests no such proof has ever been offered.

Estimated Value

The Smithsonian's 1849 is not for sale and has no realistic market value. If a second example were to surface with impeccable provenance, conservative auction estimates would begin around $20 million — comparable to the 1933 Saint-Gaudens auction record — and might exceed it given the absolute uniqueness of the issue. For practical purposes, the 1849 is uncollectible.

Key Dates and Major Rarities

The Liberty Head series contains a remarkable concentration of rarities — coins that anchor major auction events and define 19th-century US gold numismatics. Key dates concentrate in the New Orleans issues of the 1850s, the Civil War transitional issues of 1861, the early Carson City issues of the 1870s, and a handful of late-19th-century condition rarities.

1854-O Liberty Head Double Eagle

The 1854-O is one of the legendary New Orleans rarities. Mintage was 3,250 — among the lowest in the entire series — and most circulated heavily in the antebellum South before disappearing during the Civil War. Approximately 35-40 examples are known across all grades. Prices range from $300,000 in low circulated grades to over $2 million for the finest known examples. The 1854-O ranks among the most desirable issues in US gold numismatics.

1856-O Liberty Head Double Eagle

The 1856-O matches the 1854-O in rarity, with a mintage of just 2,250 — the lowest New Orleans mintage in the series. About 20 examples are confirmed to survive. Auction prices regularly exceed $400,000 in Very Fine through Extremely Fine grades, with Mint State examples reaching seven figures. The 1856-O is one of the cornerstone Type 1 rarities.

1861 Paquet Reverse

The 1861 Paquet Reverse is a celebrated transitional rarity. In 1860 Assistant Engraver Anthony C. Paquet prepared a modified reverse hub with taller, narrower letters. The new dies were briefly used in early 1861 before being withdrawn when Philadelphia struck pieces showed weak rim strikes. Only two genuine Philadelphia 1861 Paquet Reverse Double Eagles are known — one resides in the Smithsonian, the other in private hands. The unique privately-owned example sold for $7.2 million in 2021. The San Francisco branch produced about 19,250 Paquet Reverse coins before recall orders arrived; these survive in modest numbers and bring six-to-seven figures in choice grades.

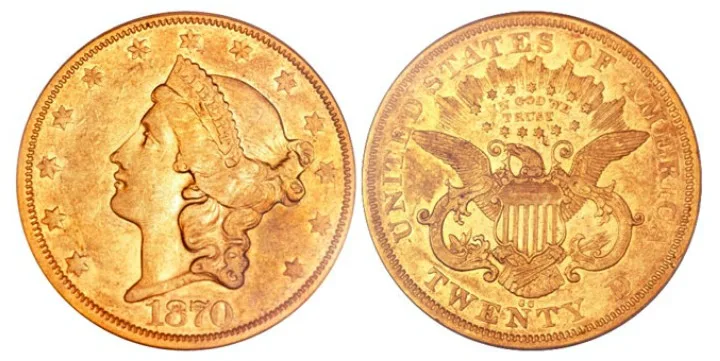

1870-CC Liberty Head Double Eagle

The 1870-CC is the king of Carson City Double Eagles and one of the most legendary regular-issue US gold coins. Carson City had opened in 1870, and this first-year-of-issue Double Eagle had a mintage of 3,789 — extraordinarily small even for the new branch mint. Approximately 40-50 examples are known, virtually all in circulated grades. Auction prices range from $250,000 in low grades to over $1 million for choice examples. Any genuine 1870-CC is a major event in numismatics; the same disciplined approach to Carson City Twenty Cent Piece attribution applies here, with the difference that the dollar stakes are vastly higher.

1879-O Liberty Head Double Eagle

The 1879-O is the only Type 3 New Orleans issue and the only New Orleans Double Eagle struck after 1860. Mintage was 2,325, and an estimated 80-100 examples survive. The 1879-O brings $40,000 in low circulated grades to over $400,000 in Mint State. As the only Type 3 New Orleans issue, it is essential for any complete date set.

1883 and 1885 Philadelphia Issues

Both the 1883 and 1885 Philadelphia Double Eagles are proof-only issues. Regular business strikes were not produced. Mintages were 92 proofs in 1883 and 77 proofs in 1885 — both among the lowest proof mintages in US gold coinage. These proofs bring $200,000-$500,000 depending on condition. Their absence from regular production makes them essential acquisitions for any Type 3 date set.

1882 Philadelphia Double Eagle

The 1882 Philadelphia is a condition rarity with a mintage of 571 business strikes (plus 59 proofs). Surviving business strikes are estimated at fewer than 100 examples, making it a major key in Mint State grades. Prices range from $30,000 in low grades to over $300,000 for choice MS-63 pieces.

1861-S Paquet Reverse

As mentioned above, San Francisco struck approximately 19,250 Double Eagles with the Paquet Reverse in early 1861 before the Mint's recall reached the West Coast. About 150-200 examples are known to survive in collectible grades, with prices ranging from $20,000 to $250,000 depending on condition. The 1861-S Paquet is distinguished from the Type 1 1861-S by the taller, narrower letters of UNITED STATES OF AMERICA.

1854 Small Date and Large Date Philadelphia

The 1854 Philadelphia exists in Small Date and Large Date varieties. The Small Date is significantly scarcer in all grades and brings 2-3x the price of the Large Date in equivalent condition.

Mint Marks: P, O, S, CC, D

Liberty Head Double Eagles were struck at five United States mints, with mint marks appearing on the reverse below the eagle, between the tail feathers and the denomination. Always examine this location carefully — counterfeiters frequently add fake CC or O mint marks to common Philadelphia coins to fabricate key-date rarities.

Philadelphia Mint (No Mint Mark)

The Philadelphia Mint produced Liberty Head Double Eagles every year from 1850 through 1907. Philadelphia issues bear no mint mark. Mintages varied dramatically across the series — from the 92 proofs of 1883 to multi-million-coin years in the late 1890s and early 1900s. Philadelphia is the source of most common-date examples and most major proof rarities.

New Orleans Mint (O Mint Mark)

The New Orleans Mint struck Liberty Head Double Eagles in 1850-1861 and again uniquely in 1879. The "O" mint mark appears on the reverse below the eagle. New Orleans is the source of the legendary 1854-O, 1856-O, and 1879-O rarities. After 1861 the Confederacy seized the mint, and once it returned to federal control after the Civil War, Double Eagle production never resumed except for the 1879-O experiment. New Orleans mintages were generally small, and the survival rate of antebellum O-mint Double Eagles is correspondingly low.

San Francisco Mint (S Mint Mark)

The San Francisco Mint struck Liberty Head Double Eagles continuously from 1854 through 1907 — the same lifespan as the series itself, since San Francisco was the closest mint to the California gold supply. The "S" mint mark appears on the reverse below the eagle. San Francisco is the source of the 1861-S Paquet Reverse and numerous condition rarities. Common-date S-mint coins from the 1890s and 1900s are abundant, but Type 1 and Type 2 S-mint issues are typically scarce in Mint State.

Carson City Mint (CC Mint Mark)

The Carson City Mint struck Liberty Head Double Eagles in 1870-1885, 1889-1891, and 1892-1893. The "CC" mint mark appears on the reverse below the eagle. Carson City is the source of the legendary 1870-CC, the great 1870-CC Type 2 rarity. Carson City Double Eagles command strong premiums across all dates due to the mint's romantic association with the Comstock Lode and Wild West history — a premium that also drives values on Carson City Morgan Dollars and Carson City Seated Liberty Dollars.

Denver Mint (D Mint Mark)

The Denver Mint struck Liberty Head Double Eagles only in 1906 and 1907 — the final two years of the series. The "D" mint mark appears on the reverse below the eagle. Denver mintages were modest (620,250 in 1906 and 158,000 in 1907), and Denver Double Eagles are uncommon in Mint State although available at moderate premiums in lower grades.

Mint Mark Position and Authentication

• Position: Always on the reverse, below the eagle's tail and above the denomination
• Style: Small, neat letters punched into individual working dies
• Sharpness: Well-defined letters with consistent depth — examine under 10x magnification
• Counterfeit warning: Added "CC" or "O" mint marks on common Philadelphia coins are a known fraud — examine for tooling marks, surface disturbance, or a mint mark that doesn't match the era's punch style

Civil War and Confederate Issues

The Civil War left a distinct mark on the Liberty Head Double Eagle series. The transition years of 1861-1862 produced both Union and Confederate-controlled striking, and the wartime monetary disruption made Double Eagles among the most desperately sought commodities in American history.

1861-O Liberty Head Double Eagle

The 1861-O is one of the most historically significant US coins. In January 1861 the State of Louisiana seized the New Orleans Mint, struck Double Eagles using existing federal dies for approximately one month, then turned the facility over to the Confederate States of America, which continued striking from the same dies for several more weeks. Coins struck under federal authority, Louisiana state authority, and Confederate authority are physically indistinguishable — all bear the date 1861 and the O mint mark. Total mintage was 17,741 across all three authorities, with approximately 800-1,000 examples surviving. Prices range from $5,000 in low grades to over $200,000 in choice Mint State.

The 1861 Confederate Half Dollar Connection

While the Confederacy did strike the famous Confederate Half Dollar from a custom reverse die at New Orleans, no Confederate-only Double Eagle exists — all 1861-O Double Eagles use federal dies regardless of which authority operated the mint at the moment of striking. This makes provenance and attribution especially complex; the same coin might have been struck by Union, state, or Confederate workers using identical equipment.

Civil War Impact on Survival

The Civil War accelerated the disappearance of Double Eagles from circulation. Both governments hoarded gold for international trade, and citizens hoarded coins as a hedge against currency uncertainty. Many Type 1 No Motto Double Eagles survive in Mint State today because they were saved during this period rather than circulated.

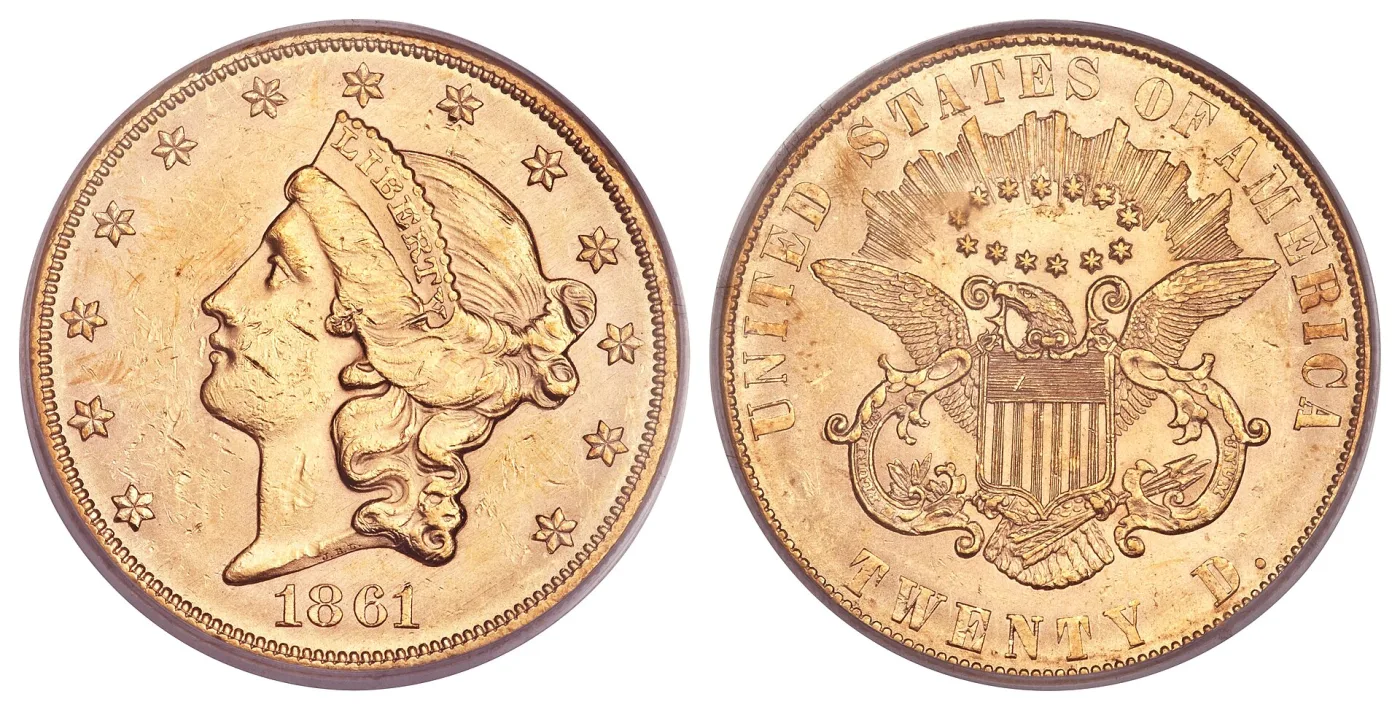

The 1861 Paquet Reverse

The 1861 Paquet Reverse story is one of the great cautionary tales of US Mint engineering. In late 1860, Assistant Engraver Anthony C. Paquet was tasked with modifying the reverse hub to address minor wear patterns observed on production dies. Paquet redesigned the lettering of UNITED STATES OF AMERICA in a taller, narrower style — visually striking but with letters that extended closer to the coin's rim than the original design.

The Production Run

In January 1861 Philadelphia struck a small quantity of Double Eagles with the Paquet Reverse. Test strikes immediately revealed a problem: the taller letters approached the rim so closely that normal striking pressure produced weak rim impressions. Mint Director James Ross Snowden ordered production halted and all coins destroyed. Two examples are confirmed to have escaped: one resides in the Smithsonian, the other surfaced in the 1930s and entered private hands.

San Francisco Production

By the time Snowden's recall order reached San Francisco — months later, given 1861 communications — the San Francisco Mint had already struck approximately 19,250 Double Eagles with the Paquet Reverse. These were released into circulation, and survive today in collectible numbers as the 1861-S Paquet Reverse. Approximately 150-200 are known across all grades.

Identifying the Paquet Reverse

The Paquet Reverse is distinguished by:

• Taller letters in UNITED STATES OF AMERICA — visibly stretched compared to standard 1861 reverses
• Narrower letter spacing — letters appear cramped relative to standard
• Weak rim strike — particularly visible above the letters where the design approaches the rim
• Position of letters close to the rim — significantly closer than standard reverses

Authentic Paquet Reverse coins are always certified by PCGS or NGC due to their value and the prevalence of counterfeits. Never purchase an uncertified example.

The 2021 Auction

In 2021 the unique privately-owned 1861 Philadelphia Paquet Reverse Double Eagle sold at Heritage Auctions for $7,200,000, ranking among the highest prices ever paid for a US gold coin. The buyer remains anonymous, and the coin reportedly resides in a major private collection alongside other landmark US rarities.

Doubled Dies, Overdates, and Varieties

Beyond the major type and mint mark distinctions, the Liberty Head series hosts numerous die-level varieties that specialists pursue. The series is less variety-rich than the Lincoln Wheat Penny, the Buffalo Nickel, or the Morgan Dollar VAM tradition, but several varieties carry meaningful premiums.

1853/2 Overdate

Some 1853 Philadelphia Double Eagles show clear evidence of an underlying 2 beneath the 3 in the date — created when an 1852 die was repunched with the 1853 date. The 1853/2 overdate brings premiums of 50-100% over normal 1853 examples in equivalent grades and is one of the most actively pursued varieties in the early Type 1 series.

1854 Small Date vs. Large Date

The 1854 Philadelphia exists in two date varieties. The Small Date features more delicate, thinner date numerals; the Large Date uses bolder, thicker numerals. The Small Date is the scarcer variety and brings 2-3x the price of the Large Date.

1859/8 Repunched Date

Some 1859 issues show clear repunching of the date numerals, with traces of the underlying 8 visible beneath the 9. The variety brings modest premiums and is collected by specialists.

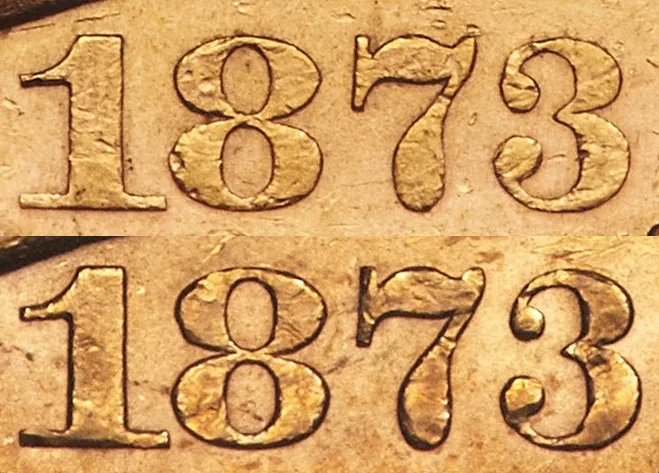

1873 Closed 3 and Open 3

The 1873 Philadelphia exists in Closed 3 and Open 3 varieties — the same dating distinction that affects the Three Cent Pieces of 1873. The Closed 3 has a 3 with tight upper and lower loops nearly forming an 8; the Open 3 has clearly separated loops. The Closed 3 is scarcer and commands modest premiums in higher grades.

1876 Centennial Issues

1876 Philadelphia Double Eagles are sometimes collected as part of US Centennial sets along with other 1876-dated coins. While not technically a variety, the 1876 date carries collector interest beyond pure numismatic rarity.

Cherrypicker Tips

• Use a 10x loupe on the date numerals for repunching, doubling, or overdate evidence
• Check the mint mark on every O, S, CC, and D issue for repunching, doubling, or signs of tooling/addition
• Examine LIBERTY on the coronet for any doubling artifacts
• Compare 1861 reverses against known Paquet and standard letter styles
• Reference the Cherrypickers' Guide and the Bowers Liberty Head Double Eagle reference for variety attribution

Grading Liberty Head Double Eagles

Accurate grading is essential because Liberty Head prices climb steeply with grade — even common dates vary from $2,500 in low grades (essentially bullion value) to $20,000+ in choice MS-65 condition. The same fundamental grading methods that apply to other 19th-century US issues work here, with particular attention to LIBERTY on the coronet and the hair detail above the ear.

High-Point Wear Pattern

Wear on Liberty Head Double Eagles progresses in a specific order across the high points:

• LIBERTY on the coronet shows wear first — letters wear from right to left across the headband
• Hair above the ear and around the bun next shows flattening
• Eagle's neck and shield on the reverse wear in parallel
• Eagle's wing tips and tail feathers show wear last among reverse details
• Stars on both sides lose their fine internal lines progressively

Circulated Grades

• Very Good-8 to Fine-12: Major design elements visible but LIBERTY only partially legible; heavy overall wear
• Very Fine-20: All seven letters of LIBERTY visible though some letters weak; substantial wear on hair and feathers
• Extremely Fine-40: All LIBERTY letters bold; light wear on highest points; most design detail intact
• About Uncirculated-50 to 58: Trace wear on hair above ear and on coronet edges; full original luster on most surfaces

Mint State Grading

Mint State grading distinctions matter enormously for value, and the Liberty Head series is particularly sensitive to bag marks because gold is a relatively soft metal:

• MS-60 to MS-62: No wear, but heavy bag marks; subdued luster; the entry level for Mint State
• MS-63: Moderate marks; reasonable luster; the most common Mint State grade for common dates
• MS-64: Lighter marks; good luster; pleasing eye appeal — a meaningful price step
• MS-65: Light marks only; full booming luster; strong eye appeal — a major price step
• MS-66: Exceptional preservation; minimal marks; superb luster — common dates jump in price 3-10x at this grade
• MS-67 and above: Genuinely rare; most issues have populations under 25 coins at this level

Strike and Luster by Type

Liberty Head Double Eagle luster varies significantly by type and mint. Type 1 Philadelphia issues from 1850-1865 typically show satin to slightly frosty luster, often with prooflike characteristics on early-state dies. New Orleans Type 1 issues show softer strike with weaker stars. Type 2 issues are notoriously poor strikes with subdued luster. Type 3 issues from the 1890s and 1900s often show booming cartwheel luster comparable to the best Morgan Dollar strikes. San Francisco issues are generally well-struck across all types.

European Hoard Coins

Many common-date Type 3 Liberty Heads available in the market today came from European bank vaults — particularly French, Swiss, and German central bank reserves repatriated since the 1970s. These "hoard coins" often show light bag marks from movement in canvas bags but retain full Mint State status. PCGS and NGC grade these examples without distinction from US-source coins, but specialists sometimes prefer particular hoards (Wells Fargo Nevada hoard for 1908 No Motto Saint-Gaudens is the analog, though that hoard postdates Liberty Head production).

Authentication and Spotting Counterfeits

Liberty Head Double Eagles are heavily counterfeited because of their high gold value and key-date premiums. Modern counterfeits range from crude Chinese-made copies (easy to detect) to sophisticated struck counterfeits using stolen or replica dies (very difficult to detect). The dollar stakes — running into seven figures for major rarities — raise authentication consequences enormously. The same authentication discipline as for the Saint-Gaudens Double Eagle applies, with additional attention to the more complex die variations of the Liberty Head series.

Weight, Diameter, and Specific Gravity

• Weight: Genuine coins weigh 33.436 grams ± 0.5 grain (0.032 g). Counterfeits made from lower-purity gold or base metals typically deviate measurably. A digital jewelry scale accurate to 0.01 grams is the minimum tool for serious authentication.
• Diameter: Genuine coins measure 34.0 millimeters across. Counterfeits sometimes vary by tenths of a millimeter.
• Specific gravity: Pure 90% gold has a specific gravity of approximately 17.16. Lower-purity counterfeits or gold-plated base-metal copies test outside this range. Specific gravity testing is a definitive non-destructive authentication method.
• Edge reeding: Liberty Head Double Eagles have a fine reeded edge with approximately 158-160 reeds. Many counterfeits show incorrect reed counts or visible file marks at the seam where two-piece counterfeit dies meet.

Counterfeit Categories

Common counterfeit types include:

• Cast counterfeits: Detectable by pebbly surfaces, soft details, and incorrect weight. A 20th-century problem; modern counterfeiters prefer struck copies.
• Struck counterfeits with base metal: Gold-plated tungsten or other dense metal cores. Detectable by specific gravity and by careful examination of edge integrity.
• Struck counterfeits in correct-purity gold: The most dangerous type. These coins have correct weight and metal content but were struck from unauthorized dies. Detection requires comparing die diagnostics and surface texture against authentic examples. Lebanese-made "Lebanon counterfeits" of the 1950s and 1960s are particularly well-executed and continue to surface today.
• Altered date or mint mark on genuine coin: Common date altered to look like 1854-O, 1856-O, 1870-CC, 1879-O, or other key — examine for tool marks under 10x magnification, particularly around date and mint mark.
• 1849 fakes: Given that only one 1849 exists (Smithsonian), any 1849 offered should be presumed counterfeit. The same standard applies to any unattributed 1861 Paquet Reverse.

Cleaned and Polished Coins

Many Liberty Head Double Eagles have been cleaned, often to make them look more like Mint State examples. Detection points include unnatural shine, hairline scratches under angled light, and orange-tinted or pinkish "dipped" appearance from harsh acid treatment. Cleaned coins receive "Details" grades from PCGS and NGC and lose 30-50% of value compared to original-surface coins.

Using Third-Party Grading

For any Liberty Head Double Eagle — even common dates — purchase already-certified examples from PCGS or NGC. The certification fee is minimal relative to the dollar amounts involved. For any premium issue (any Type 1 New Orleans, any Carson City, any S-mint Type 2, any Type 3 Philadelphia rarity, any Paquet Reverse), certified examples are essentially the only safe purchase route. Established auction houses including Heritage Auctions, Stack's Bowers, Legend Numismatics, and GreatCollections are the safest sources for higher-value pieces.

Bullion Value vs. Numismatic Premium

Liberty Head Double Eagles occupy a unique position in coin collecting because they carry both substantial bullion value and substantial numismatic premiums. Understanding the relationship between the two is essential for buying intelligently — particularly for a 58-year series where common Type 3 dates trade near melt and great rarities trade at million-dollar premiums.

The Bullion Floor

Each coin contains 0.9675 troy ounces of pure gold. At any given gold spot price, the bullion melt value is roughly: (gold spot price per ounce) × 0.9675. At $2,600 per ounce — a representative 2026 figure — the melt value is approximately $2,515. No genuine Liberty Head, regardless of date or condition, can sell for less than its melt value, because anyone willing to destroy the coin can recover that amount from a refiner.

Common-Date Premiums

For common dates in lower grades — typical 1890s-1900s Philadelphia or San Francisco coins in About Uncirculated to MS-62 condition — the typical retail premium over melt is 10-25%. Buying a common-date Liberty Head at this level is essentially a way to own gold in pre-1933 collectible form. Pre-1933 US gold is exempt from certain government confiscation precedents and is often preferred by collectors for that reason.

Numismatic Premiums

For better dates, higher grades, and key issues, premiums over melt rise dramatically. A common-date MS-65 Liberty Head might bring 8-15x melt; a Type 2 in MS-63 might bring 10-20x melt; a Carson City Type 2 in any grade brings hundreds of times melt; and the major Type 1 rarities (1854-O, 1856-O, 1861 Paquet) bring thousands of times melt. The relationship between grade, date, type, and premium is non-linear and rewards specialist knowledge.

Practical Buying Guidance

• If you want gold exposure: Buy common-date Type 3 AU-58 to MS-62 Liberty Heads at minimal premium over melt
• If you want collectible gold: Step up to MS-63 to MS-65 Type 3 common dates for moderate numismatic premium with genuine collector demand
• If you want a type set: One Type 1, one Type 2, one Type 3 in matched MS-62 to MS-63 condition for $10,000-$25,000 total
• If you want true rarity: Pursue Carson City, New Orleans Type 1, or Type 2 issues, where premiums dwarf bullion value

Current Market Values and Price Guide

Liberty Head Double Eagle values cover an enormous range — from low thousands for common-date circulated examples to eight figures for the unique 1849. The prices below reflect approximate retail values as of 2026 for problem-free, original-surface coins, assuming a gold spot price of approximately $2,600 per ounce. Cleaned, damaged, or altered examples are worth substantially less, and certified premium-grade coins regularly bring prices well above these ranges.

Type 1 Common Dates 1850-1865 (Philadelphia, San Francisco)

• Very Fine-20: $2,800–$3,500
• Extremely Fine-40: $3,000–$4,000
• About Uncirculated-58: $3,500–$5,000
• MS-62: $6,000–$10,000
• MS-63: $15,000–$25,000
• MS-64: $30,000–$60,000
• MS-65: $80,000–$200,000+

Type 2 Common Dates 1866-1876 (Philadelphia, San Francisco)

• Very Fine-20: $2,800–$3,500
• Extremely Fine-40: $3,000–$4,500
• About Uncirculated-58: $3,500–$6,000
• MS-62: $5,500–$9,000
• MS-63: $12,000–$25,000
• MS-64: $35,000–$80,000
• MS-65: $150,000–$400,000+

Type 3 Common Dates 1877-1907 (Philadelphia, San Francisco)

• Very Fine-20: $2,600–$2,800 (essentially melt)
• Extremely Fine-40: $2,650–$2,900
• About Uncirculated-58: $2,700–$3,000
• MS-62: $2,800–$3,300
• MS-63: $3,000–$3,800
• MS-64: $3,500–$5,500
• MS-65: $7,000–$15,000
• MS-66: $20,000–$40,000

Key Dates and Major Rarities

• 1849 Pattern: Smithsonian-held — no realistic market value
• 1854-O (VF-20): $300,000–$500,000
• 1854-O (EF-40): $600,000–$1,000,000
• 1856-O (VF-20): $400,000–$700,000
• 1861 Paquet Philadelphia: $7,200,000 (2021 sale of unique private example)
• 1861-S Paquet (AU-50): $50,000–$100,000
• 1861-O (VF-20): $5,000–$8,000
• 1861-O (MS-62): $80,000–$140,000
• 1870-CC (VF-20): $250,000–$400,000
• 1870-CC (EF-40): $500,000–$800,000
• 1879-O (AU-50): $80,000–$140,000
• 1879-O (MS-62): $300,000–$500,000
• 1882 (MS-63): $100,000–$200,000
• 1883 Proof (PR-63): $200,000–$350,000
• 1885 Proof (PR-63): $250,000–$450,000
• Carson City (common, AU-58): $5,000–$10,000
• Carson City (common, MS-63): $20,000–$50,000

Note: These are retail price estimates. Actual sale prices at auction vary based on eye appeal, certification, surface originality, gold spot price at sale time, and current market demand. For important purchases, reference recent auction archives from Heritage Auctions, Stack's Bowers, and Legend Numismatics alongside standard price guides like the PCGS Price Guide and the Bowers reference on Liberty Head Double Eagles.

Building a Liberty Head Double Eagle Collection

The Liberty Head Double Eagle series offers entry points at multiple budget levels, from a single common-date Type 3 near gold-melt to museum-grade rarities at seven figures. The series is significantly more challenging to collect comprehensively than its successor Saint-Gaudens Double Eagle, but its artistic and historical breadth — 58 years across five mints — rewards collectors at every level.

Single Type Coin

The simplest collection is a single common-date Mint State example. A Type 3 from the 1890s or 1900s — 1894, 1899, 1900, 1904, or similar — is widely available in choice MS-63 to MS-65 condition for $3,000-$10,000, providing a stunning specimen of one of the most historic US gold coins. Many collectors stop here.

Three-Coin Type Set

A three-coin type set captures all the design variations: Type 1 No Motto TWENTY D., Type 2 With Motto TWENTY D., and Type 3 With Motto TWENTY DOLLARS. In matched MS-62 to MS-63 condition, a type set runs $20,000-$40,000. The Type 2 is by far the most challenging of the three to acquire in Mint State given small populations across the eleven-year run.

Date Set Excluding Major Rarities

A date set excluding the 1849 pattern, 1854-O, 1856-O, 1861 Paquet Reverse, 1870-CC, 1879-O, 1882, 1883 proof, and 1885 proof is achievable in MS-62 to MS-63 condition for $250,000-$500,000. Adding the 1879-O, 1882, and one of the proof issues doubles the budget. Adding the great Type 1 New Orleans rarities (1854-O, 1856-O) pushes total cost into seven figures.

Mint Mark Set

Many collectors pursue one example from each mint that produced Liberty Head Double Eagles: Philadelphia (no mint mark), New Orleans (O), San Francisco (S), Carson City (CC), and Denver (D). The Carson City and New Orleans pieces are the budget drivers. A complete five-mint set in choice circulated condition runs $30,000-$80,000.

Specialty Approaches

• High-grade Type 3: MS-66 and MS-67 examples of common Type 3 dates — visually stunning and steadily appreciating
• Civil War set: 1861-O, 1861, 1862, 1862-S, 1863, 1864, 1864-S, 1865, 1865-S — historically compelling and achievable
• Carson City set: 1870-CC through 1893-CC complete — challenging but achievable for $200,000-$400,000
• Proof set: Proof Liberty Heads from 1858 through 1907 — small mintages, high prices
• Variety set: 1853/2 overdate, 1854 Small Date, 1859/8, 1873 Closed 3, and 1861 Paquet

Practical Tips

• Buy certified for everything: Even common dates merit PCGS or NGC certification given the dollar amounts involved and the prevalence of counterfeits
• Original surfaces command premiums: Cleaned coins are heavily discounted; learn to recognize natural luster vs. dipped surfaces
• Patience pays: Many key dates appear at auction only a few times per year; build a target list and wait for the right examples
• Track gold spot: The bullion floor moves with gold prices, affecting common-date values directly
• Use major auction archives: Heritage and Stack's Bowers archives are invaluable for studying authentic examples and recent realized prices
• Beware key-date counterfeits: Any 1854-O, 1856-O, 1870-CC, or 1879-O offered uncertified should be presumed counterfeit

Storage and Preservation

Proper storage maintains the value and visual appeal of your collection. Although gold is far more chemically stable than silver — Liberty Head Double Eagles do not tarnish or develop the toning that affects Morgan Dollars — the soft gold-copper alloy is susceptible to scratches, contact marks, and surface damage that can dramatically reduce value.

What to Avoid

• Loose storage: Coins clinking against each other produce immediate bag marks. Always store individually.
• PVC holders: Older soft plastic flips and some envelopes contain PVC, which outgasses and produces a green sticky residue. Less harmful to gold than to silver, but still avoid.
• Acidic paper: Some paper envelopes contain sulfur compounds that can produce minor surface effects on gold. Use acid-free, archival-quality envelopes.
• Direct handling: Skin oils etch gold over time; always handle by edges or wear cotton gloves
• Cleaning attempts: Even gentle cleaning leaves microscopic hairlines that grading services detect — never clean a Liberty Head Double Eagle
• High humidity: Although gold itself doesn't oxidize, the copper component can develop minor copper spots in extreme humidity

Recommended Storage

• PCGS or NGC slabs: Inert plastic holders that provide excellent long-term protection and authentication — strongly recommended for any Liberty Head
• Air-Tite holders: $20 gold-sized direct-fit capsules; safe and excellent for individual coins
• Non-PVC flips: Mylar or polyethylene flips for short-term storage and examination
• Quality albums: Capital Plastics or Dansco gold-coin albums; ensure pages are PVC-free
• Bank safe deposit box: Recommended for high-value collections; insurance considerations apply
• Climate-controlled storage: Stable temperature and low humidity for long-term collection care

Handling

Always handle Liberty Head Double Eagles by their edges. The large surface area shows fingerprints readily, and oils from skin will eventually etch the surface. Cotton gloves are appropriate for high-value coins. Never clean a Liberty Head — virtually any cleaning reduces value, and cleaned coins are easily detected by experienced graders. If a coin appears to need conservation, consult a professional service like NCS (Numismatic Conservation Services) rather than attempting it yourself.

Frequently Asked Questions

What is a Liberty Head Double Eagle and when was it made?

The Liberty Head Double Eagle is a 90% gold $20 United States coin produced from 1849 (pattern) and 1850 (regular issue) through 1907. Designed by James Barton Longacre, it features a left-facing Liberty bust with coronet on the obverse and a heraldic eagle on the reverse. The series ran for 58 years across three design types before being replaced in 1907 by the Saint-Gaudens Double Eagle.

How do I tell which Type my Liberty Head Double Eagle is?

Examine the reverse. Type 1 (1849-1866) has no motto above the eagle and shows TWENTY D. as the denomination. Type 2 (1866-1876) adds IN GOD WE TRUST on a scroll above the eagle while retaining TWENTY D. Type 3 (1877-1907) keeps the motto and changes the denomination to the spelled-out TWENTY DOLLARS. The motto presence/absence and the denomination wording together unambiguously identify the type.

What is the rarest Liberty Head Double Eagle?

The 1849 pattern is unique — only one example is confirmed to exist, held by the Smithsonian Institution. Excluding the unique 1849, the major rarities are the 1861 Paquet Reverse Philadelphia (only two known, one in the Smithsonian; the private example sold for $7.2 million in 2021), the 1856-O (about 20 known), the 1854-O (about 35-40 known), and the 1870-CC (about 40-50 known). Any of these is a major event in numismatics.

How much gold is in a Liberty Head Double Eagle?

Each Liberty Head Double Eagle contains 0.9675 troy ounces of pure gold (30.0926 grams) within its 33.436-gram total weight. The composition is 90% gold and 10% copper, the standard US gold alloy used from 1837 through 1933. At a gold spot price of $2,600 per ounce, the bullion melt value is approximately $2,515, which serves as a price floor for any genuine example.

What is the difference between TWENTY D. and TWENTY DOLLARS?

TWENTY D. (1849-1876) is the abbreviated denomination used on Type 1 and Type 2 reverses. TWENTY DOLLARS (1877-1907) is the spelled-out denomination used on Type 3 reverses. The change took effect with the start of 1877 production and applies to all mints from that date forward. The denomination change is the simplest way to distinguish Type 2 from Type 3.

What is the 1861 Paquet Reverse?

The 1861 Paquet Reverse is a brief design variation by Assistant Engraver Anthony Paquet that used taller, narrower letters in UNITED STATES OF AMERICA. Mint Director Snowden ordered production halted after weak rim strikes appeared, and Philadelphia destroyed virtually all examples (only two are known to survive). San Francisco struck approximately 19,250 before receiving the recall order, and those survive in modest numbers as the 1861-S Paquet Reverse. The Philadelphia variant is one of the most valuable US coins ever sold.

Are Carson City Liberty Head Double Eagles all rare?

All Carson City Liberty Head Double Eagles command strong premiums, but only the 1870-CC is a true major rarity. The 1870-CC has a mintage of 3,789 with about 40-50 surviving, and brings $250,000+ in any grade. Other CC dates from the 1871-1893 production are scarcer-than-Philadelphia but available in collectible numbers, with common CC dates running $5,000-$15,000 in About Uncirculated to MS-62 grades.

How do I know if my Liberty Head Double Eagle is real?

Authentic coins weigh 33.436 grams with a 34.0-millimeter diameter and a fine reeded edge. The most reliable authentication is third-party certification by PCGS or NGC. For valuable examples (any Type 1 O-mint, any CC-mint, any Type 2, any Type 3 rarity, any Paquet Reverse), only purchase certified coins from established auction houses. Counterfeits range from crude cast pieces to sophisticated Lebanese-made struck copies, and the dollar amounts at stake make professional authentication essential.

Can I clean my Liberty Head Double Eagle?

No — cleaning reduces value substantially even on gold coins. Although gold is chemically stable, cleaning leaves hairlines visible under magnification, and harsh cleaning ("dipping") removes original surface and produces unnatural pinkish-orange color. Cleaned coins receive "Details" grades from PCGS and NGC and lose 30-50% of value compared to problem-free original surfaces. If a coin truly needs conservation, use a professional service like NCS rather than attempting it yourself.

Is a Liberty Head Double Eagle a good investment?

Liberty Head Double Eagles offer dual appreciation potential: gold bullion value and numismatic collector value. Common Type 3 dates track gold prices closely with a small premium; key dates and high-grade examples have appreciated substantially over decades regardless of gold spot. The series benefits from genuine rarity (Civil War-era and Carson City pieces), strong artistic and historical interest, and limited new supply (pre-1933 US gold is exempt from certain potential confiscation precedents). As with any collectible, collect for enjoyment first and treat investment returns as a bonus.
